Project development Time: Otc 2017

Industry: Pneumatic industry, mechanical industry

Used material: 17-4PH, 316L

Qty: 50,000 pcs per month

Benefit: Cost Saving

Main Forming Process: Metal Injection Moulding

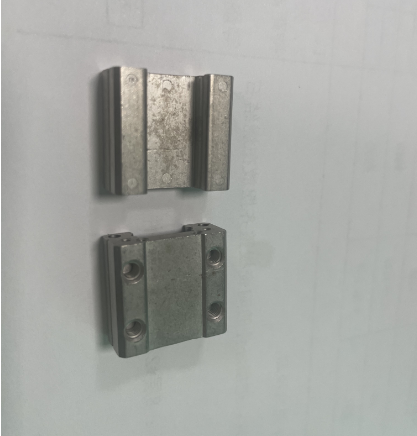

Project Name: Linear Guide Slider

Client Introduce: The company is one of the Chinese leading mechanical  industry companies Mainly engaged in concrete machinery, road machinery, crawler crane, piling machinery, excavating machinery, automobile crane manufacturing and sales of the company, belongs to the construction machinery industry.

Case background

The linear guide system is a rolling guide that utilizes steel balls to wirelessly roll between the slider and the guide rail. The load platform can easily move linearly with high accuracy along the guide rail. Compared with traditional sliding guides, the friction coefficient of rolling guide can be reduced to 1/50 of the original. Due to the significant reduction in starting friction and relatively less occurrence of ineffective movements, it is easy to achieve um level feed and positioning.

Solution

Harber MIM was the best place for the above-mentioned manufacturer.Based on the actual needs of customers, we organized project research, designed special mold fixtures, tooling fixtures, inspection fixtures, and conducted comprehensive validation of the process. After several optimizations, the sample successfully passed the customer's testing in less than 2 months.

We Harber MIM have been in the MIM industry for at least 15 years and have sufficient experience in size control.

The MIM Linear Guide Slider had been now producing 50,000 sets per month. This is also a challenge for us. So we would control from tooling, injection machine, degrease furnace to sintering furnace every day and arrange fixed person to test the goods every day.
