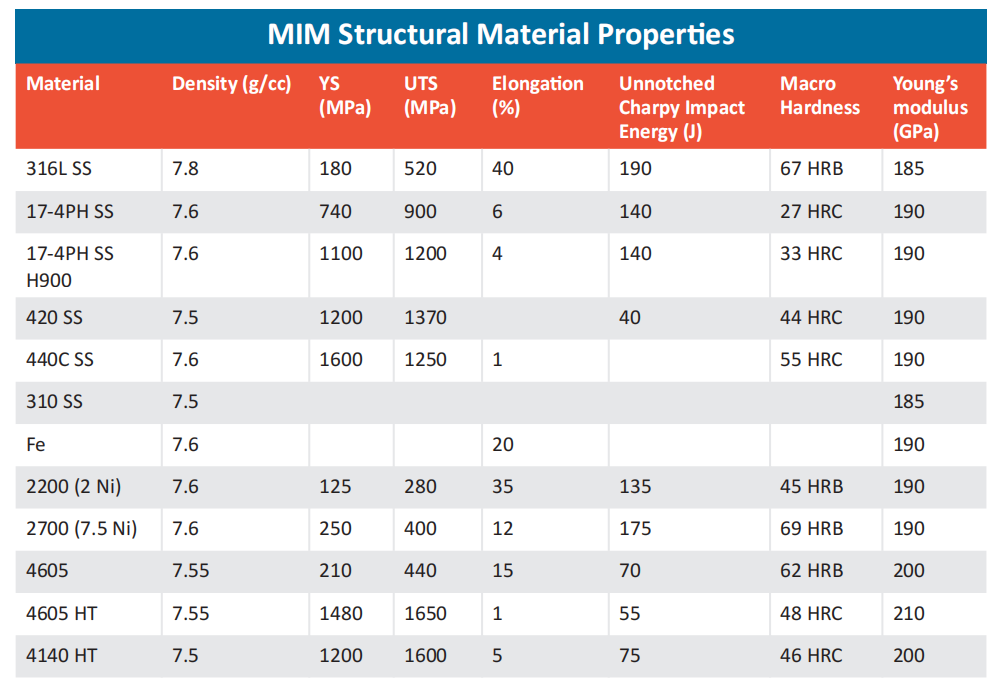

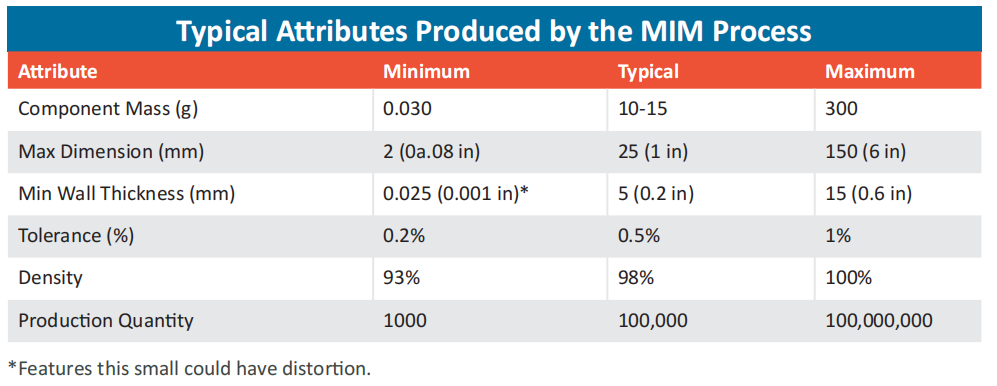

As a China leader in metal injection molding for the last 10 years, we know a thing or two  about the design process. Our quick guide walks you through design recommendations,  typical attributes and material properties. Still stumped? Let our experts take a closer  look.

MIM Metal Design Do’s

• Maintain uniform wall thickness

• Core out thick areas

• Design with a flat surface, lettering, and  threads

• Consider location of gates, ejector pins,  and parting lines

MIM Metal Design Dont’s

• Walls should be no thinner than 0.1mm  (0.0039 in.)

• Don’t design holes smaller than 0.1mm  (0.0039 in.) in diameter

• Don’t design components over 12.5 mm  (0.5) thick and over 100 grams in mass

• Avoid designing sharp corners
